Used 2006 Thermwood CS45 3 Axis CNC Router

Description

Description

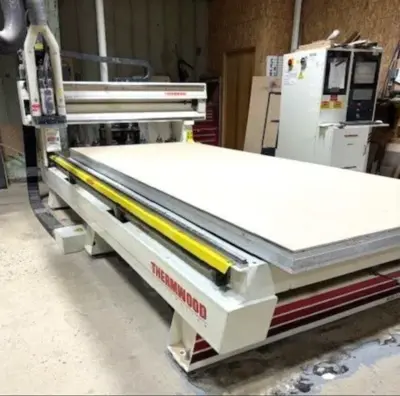

5'X12' THERMWOOD MODEL CS45 3-AXIS CNC ROUTER, Q-Core CNC upgrad, windows 7 software, 7 position tool changer, 10.5 HP 24,000 rpm spindle, tool length measure

Specifications

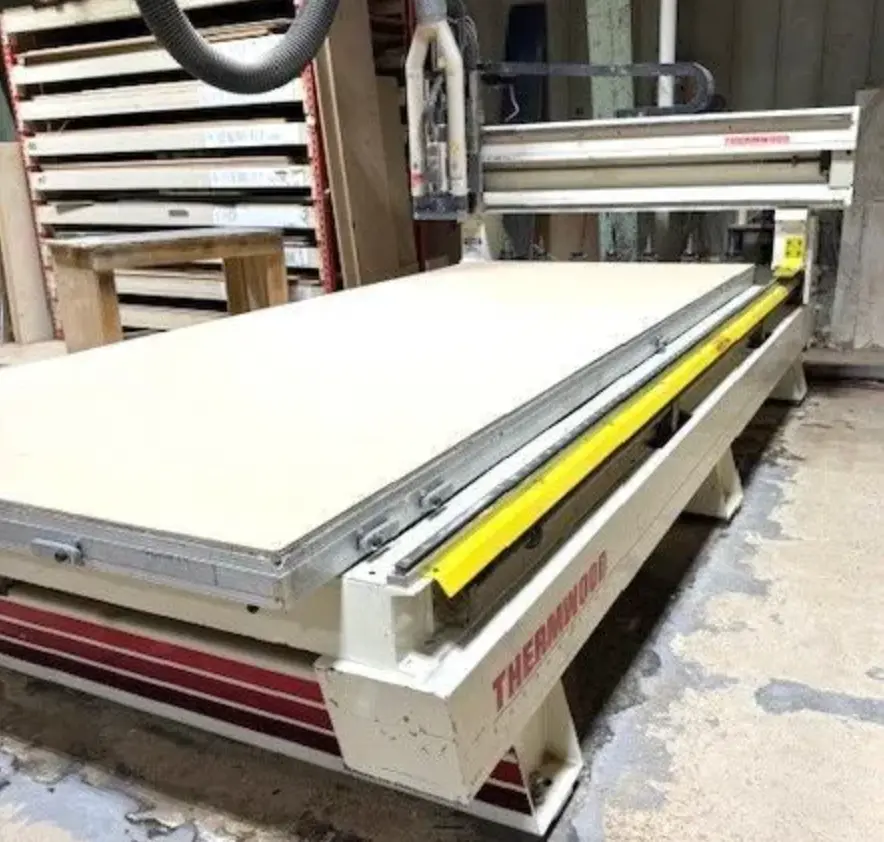

5'x12' Moving Gantry with a machined aluminum Table
Single-zone acrylic vacuum plenum, and manual Pop-up Pins
Features:
144" X, 74.2" Y, 9.8" Z, axis travel
High Performance closed loop AC Servo motors driving precision Ball Screws on
all Axes with feed speeds up to 1,2000 IPM on the X & Y Axis.
Way & Ball Screw Bearings serviced by an automatic lubrication system.

Equipped With
Year 2006
Q-Core CNC Upgrade with windows 7 software
Fixed table moving gantry router design
Table size 60" x 144"
All axis ball screw drive with feed rates up to 1,200 inches/min
(1) Vertical HSD air cooled Electro-router spindle ES919
10.5 Hp inverter driven motor with spindle speed range 3,000 to 24,000 rpm
ISO-30 spindle mount
(1) Rear table mounted 7 space ATC (Automatic Tool Changer)
Automatic tool length measurement pad mounted on the right hand carriage
(The pad automatically measure the tool length in the router head)
Automatic machine lubrication system
Heavy duty ball screws drive system with THK linear bearings
Table work height 31-1/2"
Side and front manual pop up location pins
Hand held machine positioning and controller unit

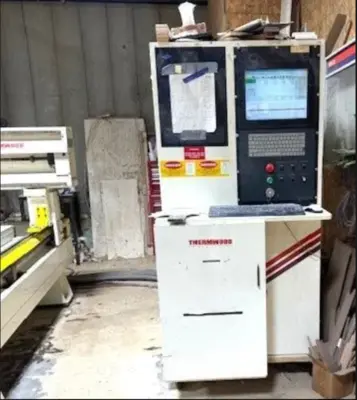

Freestanding computer and printer control cabinet
